US FedEx Ground delivery is published as free and 3–10 days. Current checkout terms govern.
Coverage and exclusions are model-specific. Confirm the warranty shown for this product.
Warranty detailsContact SOK for authorization before returning any battery.
Model information
Everything documented for this model
Feature availability is model-specific. Review the complete product information before configuring a battery system.

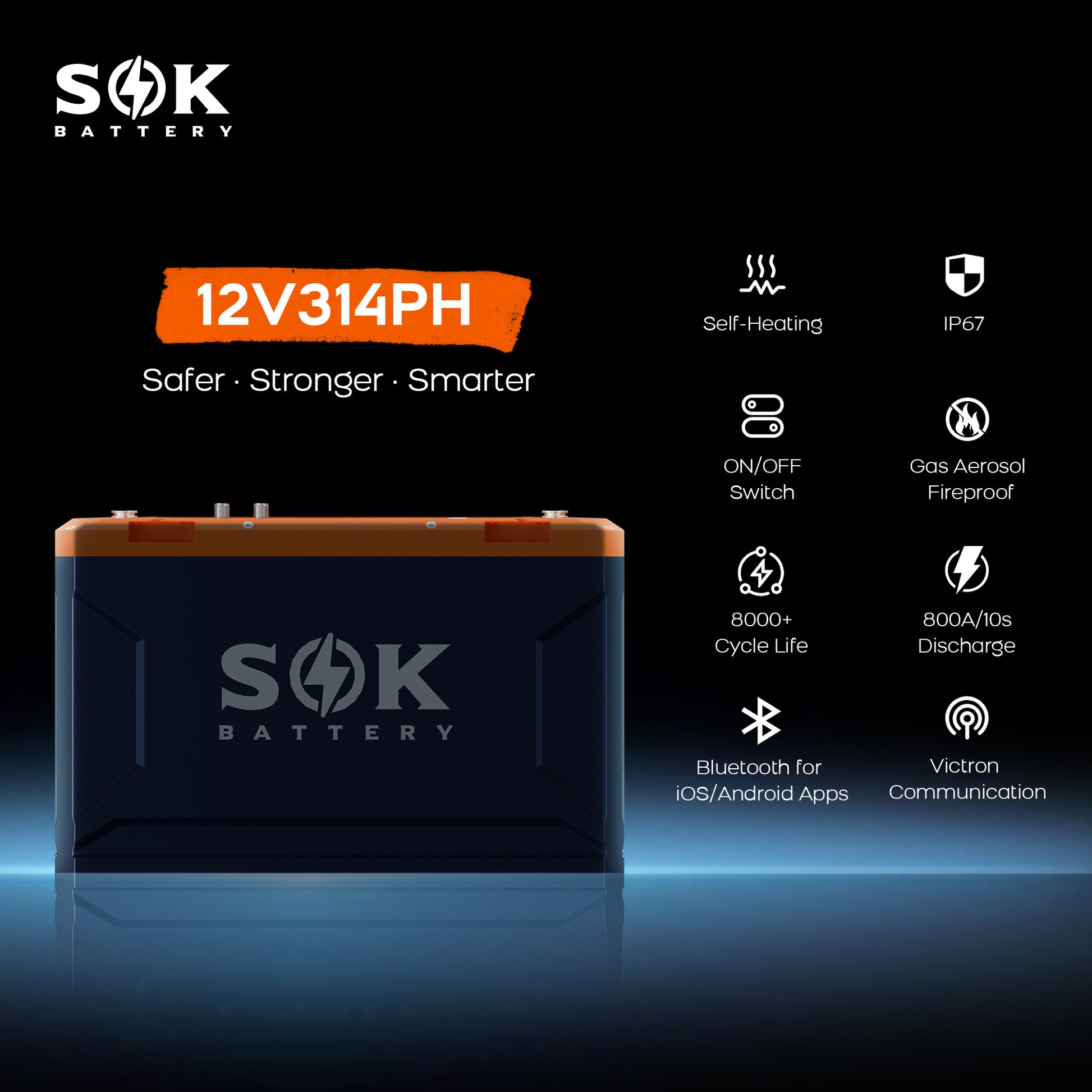

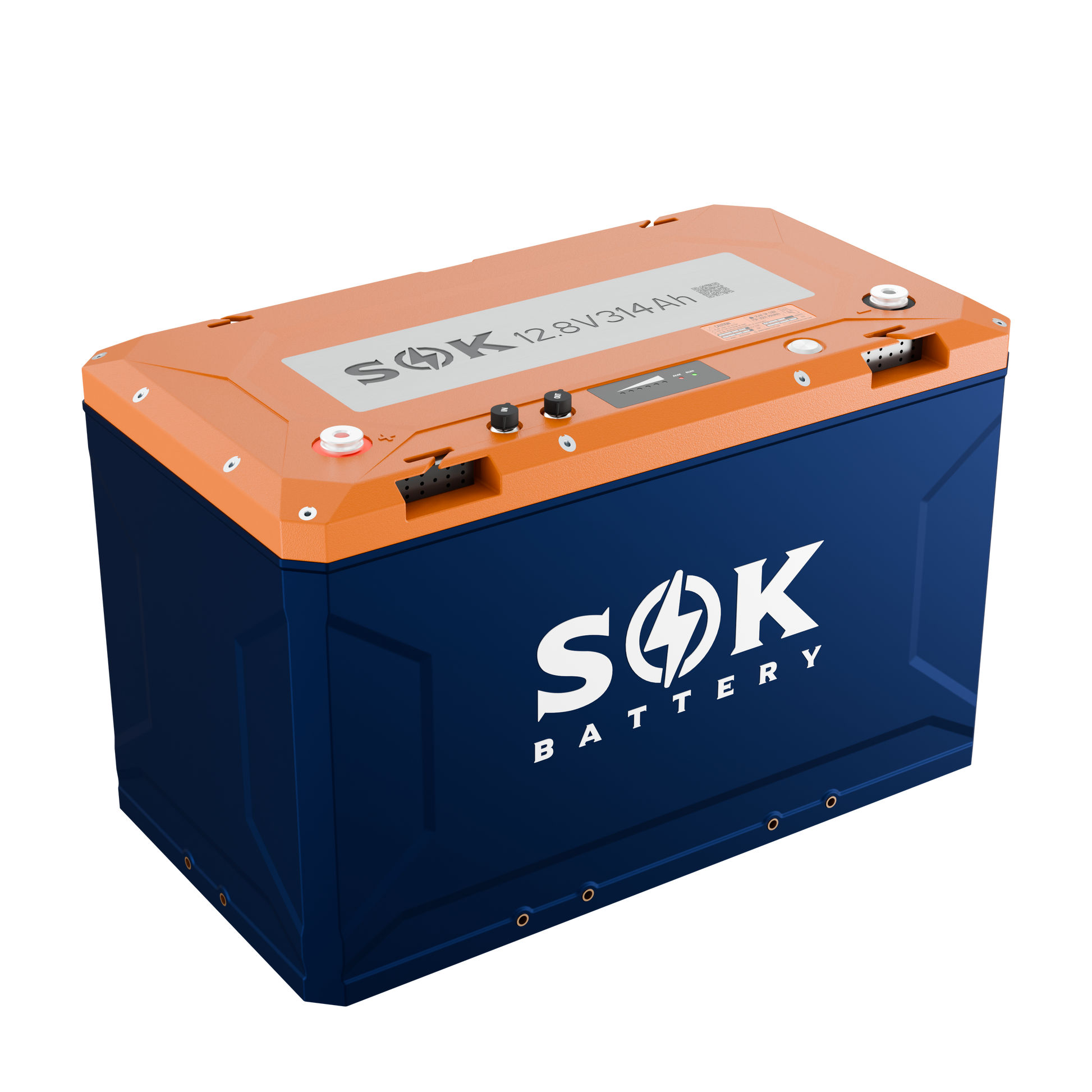

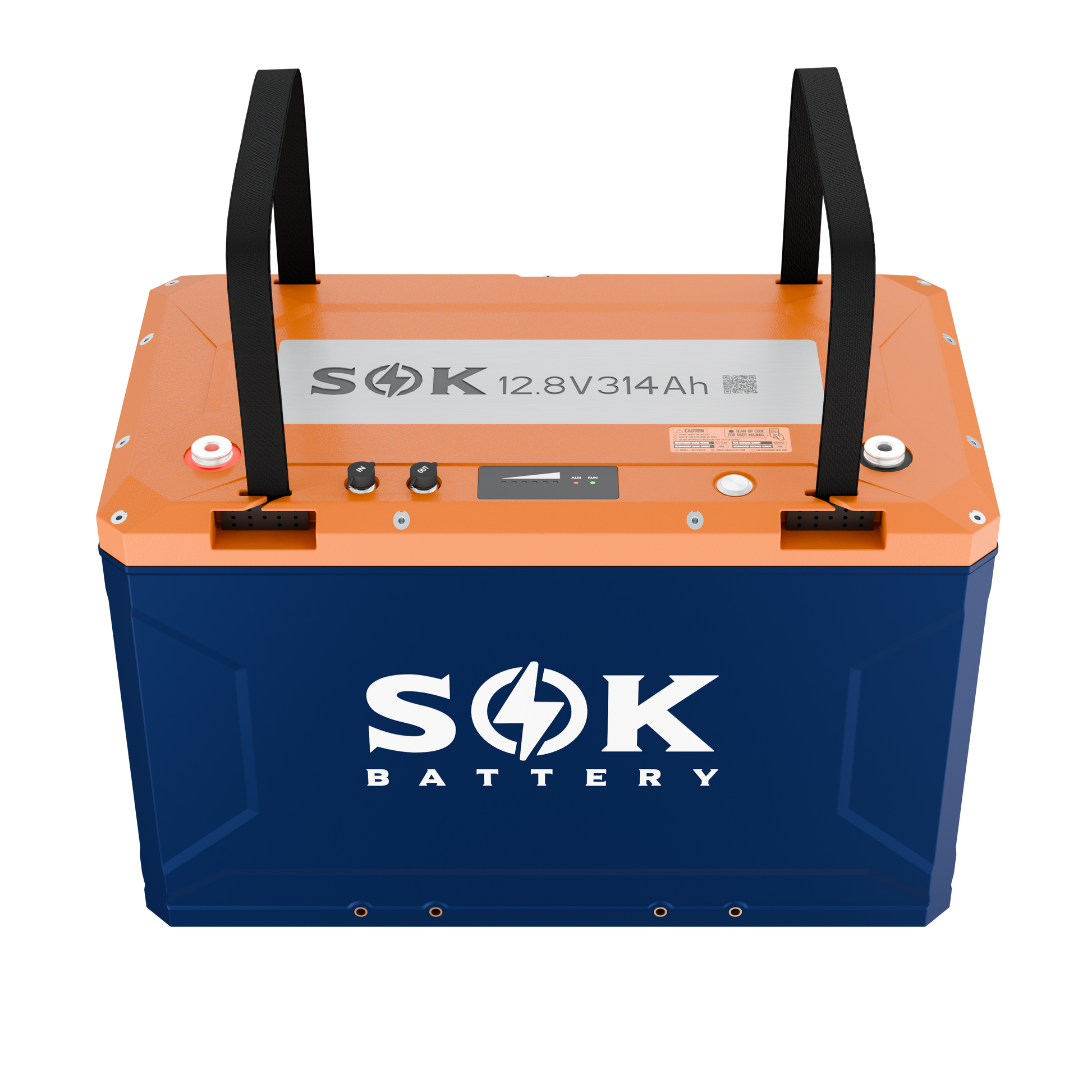

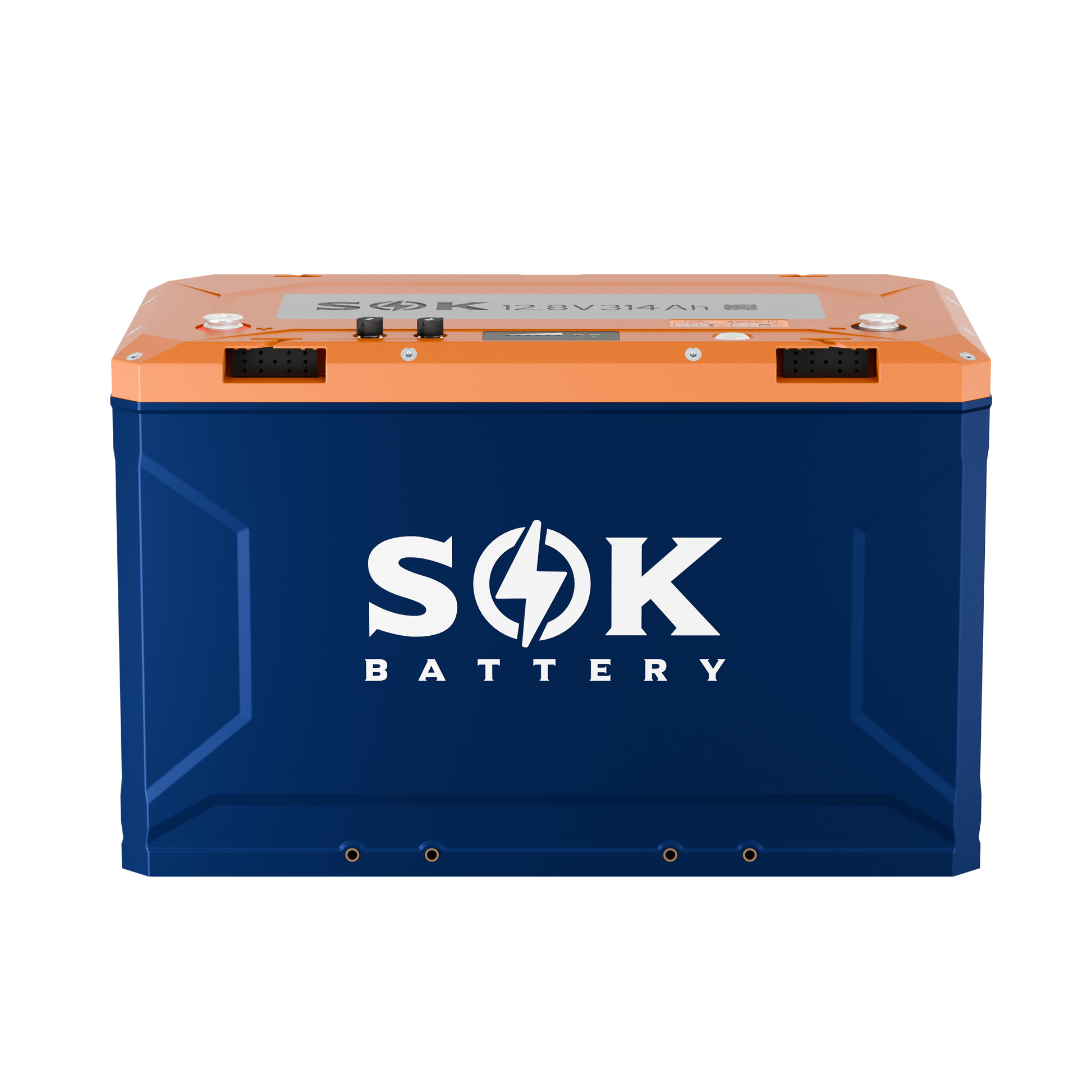

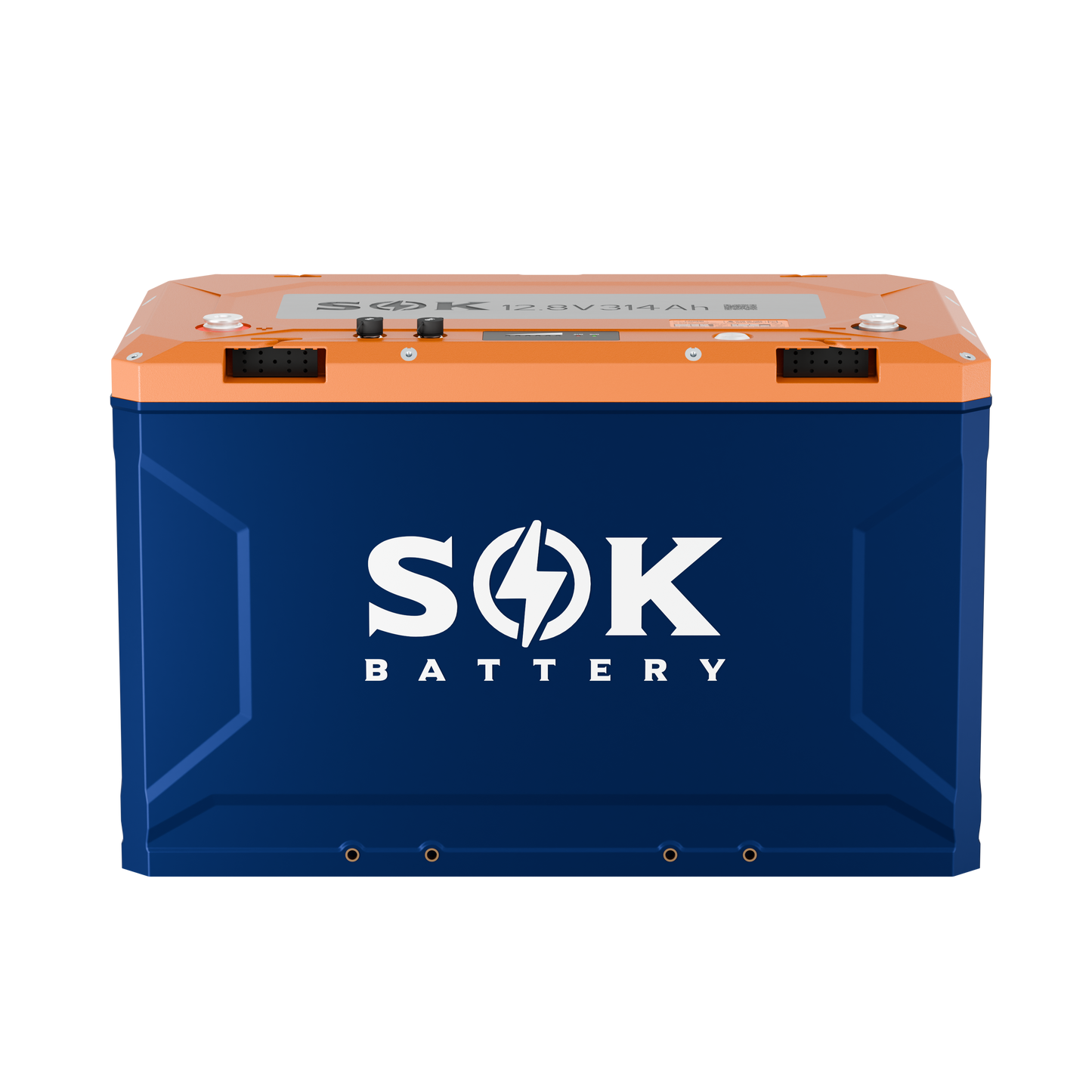

SOK 12V 314Ah lithium iron phosphate batteries.
ABS housing, best for RV or marine applications!
Designed to comply with applicable ABYC standards, including ABYC E-13.
Up to 15000 cycles.
Bluetooth Function,self-heater pad built-in.
CAN Communication with Victron Inverter
Peak Discharge Current: 800A 10S
Support connect 10pcs in Parallel.
Support connect in series for 24v,36v,48v bank.
Description
1.CAN Communication with Victron Inverter: Supports CAN protocol, ensuring seamless communication and integration with Victron inverters.
2.Self-Heating: Built-in self-heating functionality allows for reliable operation in low-temperature environments, perfect for installations in colder climates.
3.Gas Aerosol Fireproof: Equipped with a gas aerosol fire suppression system for enhanced safety, quickly containing potential fire hazards.
4.IP67 Waterproof & Dustproof: Designed with IP67 protection, offering excellent water and dust resistance for extended durability in outdoor and harsh environments.
5.15000+ Cycle Life: Delivers a long lifespan with over 15000 charge cycles, ensuring sustained performance over time.
6.Bluetooth 5.1 for iOS and Android Apps: Allows real-time monitoring and control via Bluetooth on both iOS and Android devices .
7.ON/OFF Switch: Features an easy-to-use switch for quick power control
8.800A/10s Peak Discharge Current: Supports a peak discharge of 800A for 10 seconds.
9.Connect in series or in Parallel: Support connect max 10 batteries in parallel or max 4 batteries in series.
Spec information
Charge information:
Recommended Charge Current:150 A
Maximum Charge Current:200 A
Recommended Charge Voltage:13.8 V
Discharge information:
Maximum Continuous Discharge Current:200 A
Peak Discharge Current:800 A (7.5 s ±2.5 s)
Recommended Low Voltage Disconnect:10.4V

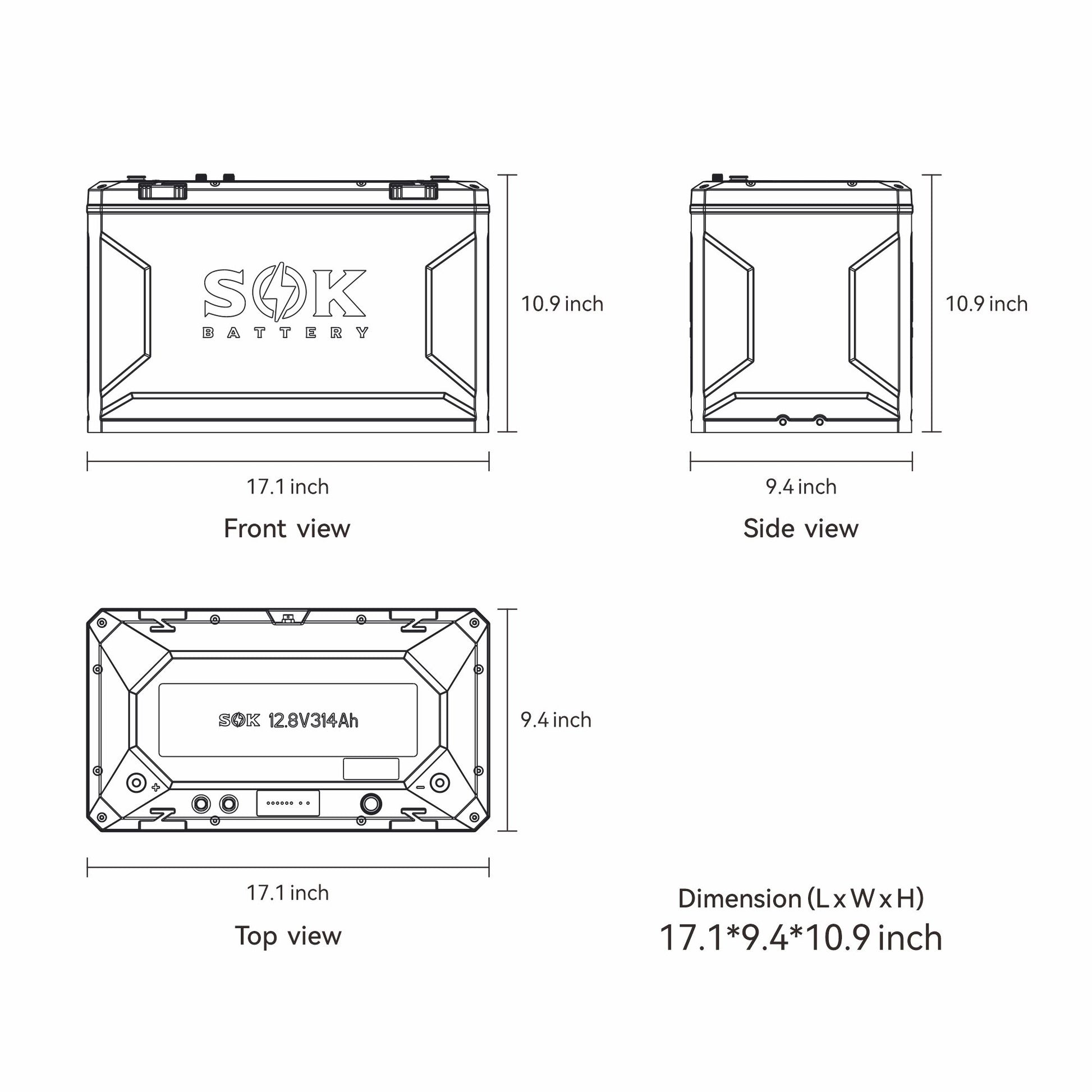

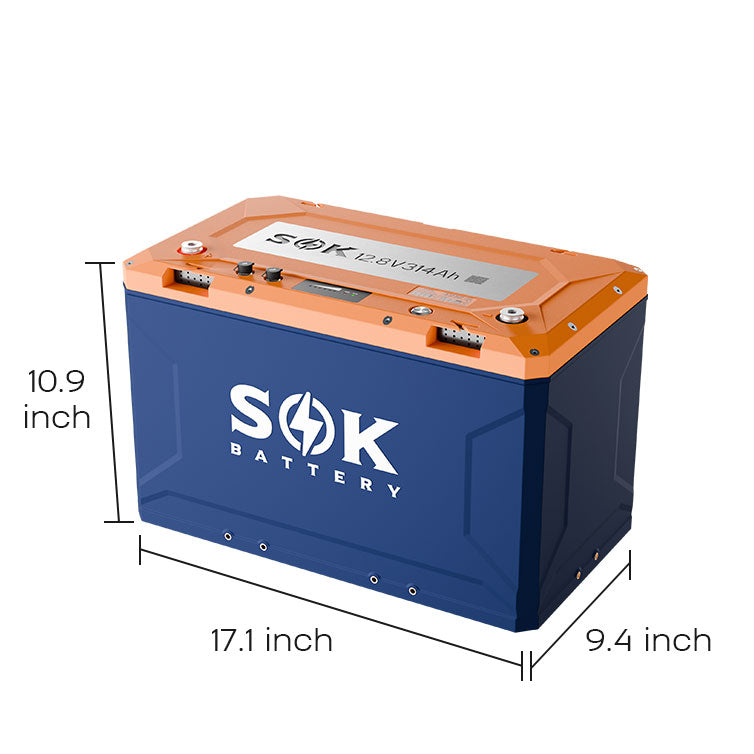

Size Information:17.1 inch X9.4 inchx10.9 inch
Terminal Type: M8, 5/16 lugs
Weight: 67 lbs.
Temperature Information:
Discharge Temperature: -4 to 140 ºF
Charge Temperature: -4 to 122 ºF (built-in heater pad)
Storage Temperature: 23 to 95 ºF
Certifications:
UL1973&IEC62619 for Battery cells.
MSDS,UN38.3 for shipping.
Downloads
Please login for download
Spec Sheet & User manual:
ABYC Compliance
Upgrade Tool
Model-specific data
Technical specifications
- Voltage
- 14.6V
- Capacity
- 4020Wh
- Continuous current
- 200A Continuous, 800A Peak
- Cycle life
- 15000+ cycles
