US FedEx Ground delivery is published as free and 3–10 days. Current checkout terms govern.
Coverage and exclusions are model-specific. Confirm the warranty shown for this product.
Warranty detailsContact SOK for authorization before returning any battery.
Model information
Everything documented for this model
Feature availability is model-specific. Review the complete product information before configuring a battery system.
In stock, ready to ship.
Latest V8 version Bluetooth BMS, top battery cells balance function.
Description
7 Years Warranty.4000~8000 Cycles Life Span,Free Maintenance.
Detachable Cover,Replaceable BMS or Cells.
Connect in series for 48V Battery Bank, or Connect in Parallel for Larger Capacity.
Built-in Smart Battery Management System.
Low Temperature Charging Cut-off.
High Temperature Charging or Discharging Cut-off.
Over Charging or Discharging Protection.
Over Current & Short Circuit Protection.
Battery Cells Auto Balance.
Spec Information
Charge information:
Recommend charge current: 20A
Maximum charge current: 70A
Recommend charge voltage:28.8V ~29.2V
Maximum batteries in series: 2PCs batteries.
Discharge Information:
Maximum continuous discharge current: 100A
Peak discharge current: 200A(3 seconds)
Recommend low voltage disconnect: 22.4V
BMS discharge cut-off voltage: Around 20.8V
Reconnect Voltage:>23.2V

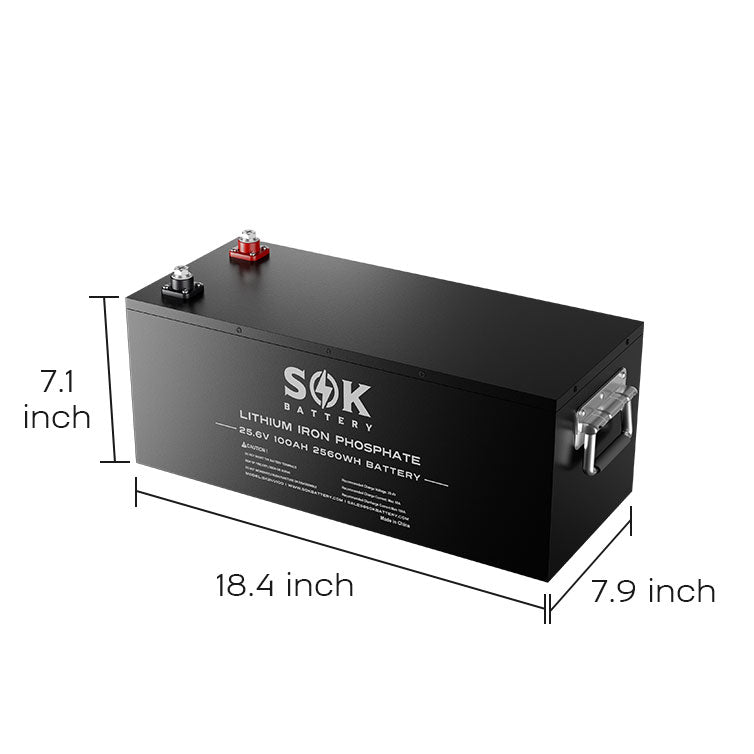

Size Information:
Terminal Type: M8, 5/16 lugs
Weight: 48 lbs.
Temperature Information:
Discharge temperature:-4°F~140°F
Charge temperature: 32°F~113°F
Recommend storage temperature:23°F~95°F
Certifications Information:
UL1973&IEC62619 for Battery cells.
Downloads
Please login for download
Spec Sheet & User manual:
Model-specific data
Technical specifications
- Voltage
- 29.2V
- Capacity
- 2560Wh
- Continuous current
- 100A Continuous, 200A Peak
- Cycle life
- 6000+cycles
- Warranty
- 7 years
